    产品展示您现在的位置:首  页 >> 产品展示 >> 船形开关 >> 防水船形开关

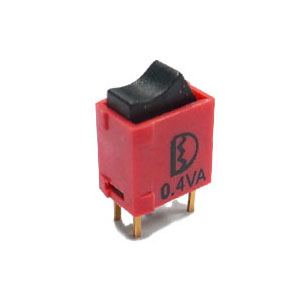

    Sub-Miniature Rocker Switches-4U Series
    产品名称:Sub-Miniature Rocker Switches-4U Series

    Features / 特色
    防水密封能預防因焊接或清理過程中的汙染物
    Sealed against solder and cleaning process contaminants
    使用面積小節省空間
    Small footprint – saves space

    Applications / 應用範圍
    PLC、GPS、汽車電子
    PLC、GPC、Automotive
    小型儀器測試設備、醫療設備
    Small instrumentation、Medical equipment
    麥克風, 音頻設備
    Microphone, Audio equipment



    SPECIFICATION
    Mechanical life: 50,000 make-and-break cycles.
    Contact rating: 0.4 VA max @20 VAC or DC max.
    Circuit: SPDT、DPDT
    Contact resistance: 10mΩmax. initial @ 2-4VDC
    100mA for both silver and gold plated contacts.
    Insulation resistance: 1,000MΩmin.
    Dielectric strength: 1,000 Vrms min.@sea level.

    Contact resistance: 10mΩmax. initial @ 2-4VDC
    100mA for both silver and gold plated contacts.
    Insulation resistance: 1,000MΩmin.
    Dielectric strength: 1,000 Vrms min.@sea level.
     Contact resistance: 100mΩ tpy. initial @ 2-4VDC 100mA
    Insulation resistance: DC500V 500 MΩ
    Dielectric strength: 500Vrms min.@sea level.
